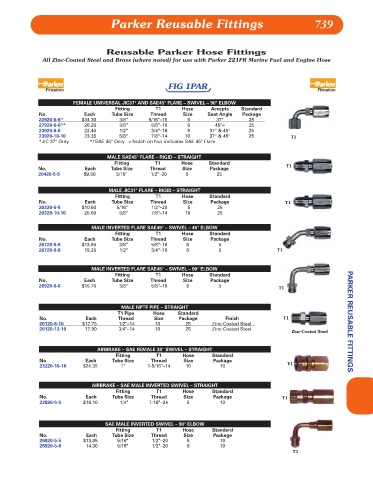

Parker Reusable Fittings 739

Reusable Parker Hose Fittings
All Zinc-Coated Steel and Brass (where noted) for use with Parker 221FR Marine Fuel and Engine Hose

FIG 1PAR

FEMALE UNIVERSAL JIC37° AND SAE45° FLARE – SWIVEL – 90° ELBOW
Fitting T1 Hose Accepts Standard
No. Each Tube Size Thread Size Seat Angle Package
23920-6-6* $34.30 3/8" 9/16"–18 6 37° 25
27920-6-6** 26.20 3/8" 5/8"–18 6 45°≠ 25
23920-8-8 22.40 1/2" 3/4"–16 8 37° & 45° 25
23920-10-10 23.35 5/8" 7/8"–14 10 37° & 45° 25 T1
*JIC 37° Only **SAE 45° Only ≠ Notch on Nut indicates SAE 45° Flare

MALE SAE45° FLARE – RIGID – STRAIGHT
Fitting T1 Hose Standard T1
No. Each Tube Size Thread Size Package
20420-5-5 $9.50 5/16" 1/2"–20 5 25

MALE JIC37° FLARE – RIGID – STRAIGHT
Fitting T1 Hose Standard
No. Each Tube Size Thread Size Package T1
20320-5-5 $10.60 5/16" 1/2"–20 5 25
20320-10-10 25.00 5/8" 7/8"–14 10 25

MALE INVERTED FLARE SAE45° – SWIVEL – 45° ELBOW
Fitting T1 Hose Standard
No. Each Tube Size Thread Size Package
26720-6-6 $13.95 3/8" 5/8"–18 6 5
26720-8-8 19.35 1/2" 3/4"–18 8 5 T1

MALE INVERTED FLARE SAE45° – SWIVEL – 90° ELBOW
Fitting T1 Hose Standard
No. Each Tube Size Thread Size Package
26920-6-6 $15.70 3/8" 5/8"–18 6 5
T1

MALE NPTF PIPE – STRAIGHT
T1 Pipe Hose Standard
No. Each Thread Size Package Finish T1
20120-8-10 $12.75 1/2"–14 10 25 Zinc-Coated Steel PARKER REUSABLE FITTINGS
20120-12-10 17.90 3/4"–14 10 25 Zinc-Coated Steel
Zinc-Coated Steel

AIRBRAKE – SAE FEMALE 30° SWIVEL – STRAIGHT
Fitting T1 Hose Standard
No. Each Tube Size Thread Size Package
23220-16-16 $24.35 1" 1-5/16"–14 16 10 T1

AIRBRAKE – SAE MALE INVERTED SWIVEL – STRAIGHT
Fitting T1 Hose Standard
No. Each Tube Size Thread Size Package T1
22820-5-5 $19.10 1/4" 7-16"–24 5 10

SAE MALE INVERTED SWIVEL – 90° ELBOW
Fitting T1 Hose Standard
No. Each Tube Size Thread Size Package
26920-5-5 $13.85 5/16" 1/2"–20 5 10
26920-5-6 14.30 5/16" 1/2"–20 6 10
T1
