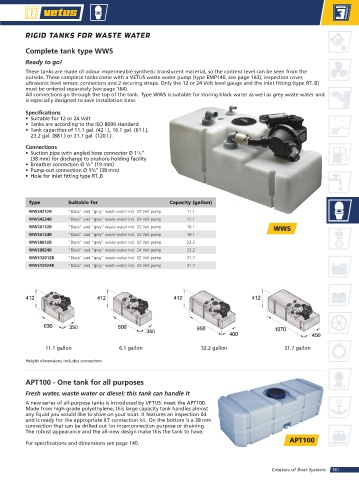

Page 161 - Vetus

RIGID TANKS FOR WASTE WATER

Complete tank type WWS
Ready to go!
These tanks are made of odour impermeable synthetic translucent material, so the content level can be seen from the
outside. These complete tanks come with a VETUS waste water pump (type EMP140, see page 163), inspection cover,
ultrasonic level sensor, connectors and 2 securing straps. Only the 12 or 24 Volt level gauge and the inlet fitting (type RT..B)
must be ordered separately (see page 164).
All connections go through the top of the tank. Type WWS is suitable for storing black water as well as grey waste water and
is especially designed to save installation time.

Specifications
• Suitable for 12 or 24 Volt
• Tanks are according to the ISO 8099 standard
• Tank capacities of 11.1 gal. (42 l.), 16.1 gal. (61 l.),
23.2 gal. (88 l.) or 31.7 gal. (120 l.).

Connections
• Suction pipe with angled hose connector Ø 1 /2’’
1
(38 mm) for discharge to onshore holding facility
• Breather connection Ø /4” (19 mm)
3
• Pump-out connection Ø 1 /2’’ (38 mm)
1
• Hole for inlet fitting type RT..B

Type Suitable for Capacity (gallon)
WWS4212B “Black” and “grey” waste water incl. 12 Volt pump 11.1
WWS4224B “Black” and “grey” waste water incl. 24 Volt pump 11.1
WWS6112B “Black” and “grey” waste water incl. 12 Volt pump 16.1 WWS
WWS6124B “Black” and “grey” waste water incl. 24 Volt pump 16.1
WWS8812B “Black” and “grey” waste water incl. 12 Volt pump 23.2
WWS8824B “Black” and “grey” waste water incl. 24 Volt pump 23.2
WWS12012B “Black” and “grey” waste water incl. 12 Volt pump 31.7
WWS12024B “Black” and “grey” waste water incl. 24 Volt pump 31.7

11.1 gallon 6.1 gallon 32.2 gallon 31.7 gallon

Height dimensions includes connectors

APT100 - One tank for all purposes
Fresh water, waste water or diesel: this tank can handle it

A new series of all-purpose tanks is introduced by VETUS: meet the APT100.
Made from high-grade polyethylene, this large capacity tank handles almost
any liquid you would like to store on your boat. It features an inspection lid
and is ready for the appropriate ILT connection kit. On the bottom is a 38 mm
connection that can be drilled out for interconnection purpose or draining.
The robust appearance and the all-new design make this the tank to have.
APT100
For specifications and dimensions see page 140.

Creators of Boat Systems 161
