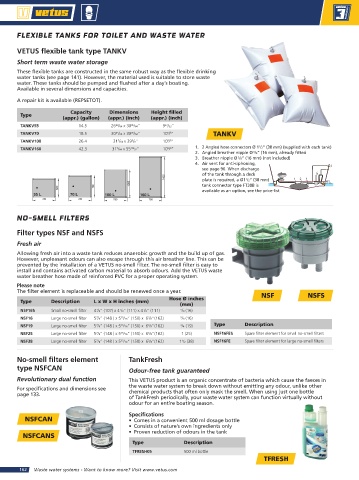

FLEXIBLE TANKS FOR TOILET AND WASTE WATER

VETUS flexible tank type TANKV
Short term waste water storage
These flexible tanks are constructed in the same robust way as the flexible drinking
water tanks (see page 141). However, the material used is suitable to store waste
water. These tanks should be pumped and flushed after a day’s boating.
Available in several dimensions and capacities.
A repair kit is available (REPSETOT).

Capacity Dimensions Height filled
Type
(appr.) (gallon) (appr.) (inch) (appr.) (inch)
27
49
TANKV55 14.5 26 /64 x 30 /64” 9 /32”
45
TANKV70 18.5 30 /64 x 30 /64” 10 / ” TANKV
45
5 8
45
TANKV100 26.4 31 /64 x 39 /8” 10 / ”
5 8
3
7
1
TANKV160 42.3 31 /64 x 55 29/ 32” 10 / ” 1. 2 Angled hose connectors Ø 1 /2” (38 mm) (supplied with each tank)
7
5 8
2. Angled breather nipple Ø /8” (16 mm), already fitted
5
3. Breather nipple Ø /8” (16 mm) (not included)
5
4. Air vent for anti-siphoning,
see page 96. When discharge
of the tank through a deck
plate is required, a Ø1 /2” (38 mm)
1
tank connector type FT38B is
available as an option, see the price-list
NO-SMELL FILTERS
Filter types NSF and NSFS
Fresh air
Allowing fresh air into a waste tank reduces anaerobic growth and the build up of gas.
However, unpleasant odours can also escape through this air breather line. This can be
prevented by the installation of a VETUS no-smell filter. The no-smell filter is easy to
install and contains activated carbon material to absorb odours. Add the VETUS waste
water breather hose made of reinforced PVC for a proper operating system.
Please note
The filter element is replaceable and should be renewed once a year.
Hose Ø inches NSF NSFS
Type Description L x W x H inches (mm)
(mm)
NSF16S Small no-smell filter 4 /4” (107) x 4 /8” (111) x 4 /8” (111) 5 /8 (16)
1
3
3
NSF16 Large no-smell filter 5 /8” (148 ) x 5 /16” (150) x 6 /8”(162) 5 /8 (16)
7
3
15
NSF19 Large no-smell filter 5 /8” (148 ) x 5 /16” (150) x 6 /8”(162) 3 /4 (19) Type Description
3
15
7
NSF25 Large no-smell filter 5 /8” (148 ) x 5 /16” (150) x 6 /8”(162) 1 (25) NSF16FES Spare filter element for small no-smell filters
3
15
7
NSF38 Large no-smell filter 5 /8” (148 ) x 5 /16” (150) x 6 /8”(162) 1 /2 (38) NSF16FE Spare filter element for large no-smell filters
1
15
7
3
No-smell filters element TankFresh
type NSFCAN Odour-free tank guaranteed
Revolutionary dual function This VETUS product is an organic concentrate of bacteria which cause the faeces in
For specifications and dimensions see the waste water system to break down without emitting any odour, unlike other
page 133. chemical products that often only mask the smell. When using just one bottle
of TankFresh periodically, your waste water system can function virtually without
odour for an entire boating season.
Specifications
NSFCAN • Comes in a convenient 500 ml dosage bottle
• Consists of nature’s own ingredients only
• Proven reduction of odours in the tank
NSFCANS
Type Description
TFRESH05 500 ml bottle
TFRESH
162 Waste water systems - Want to know more? Visit www.vetus.com
