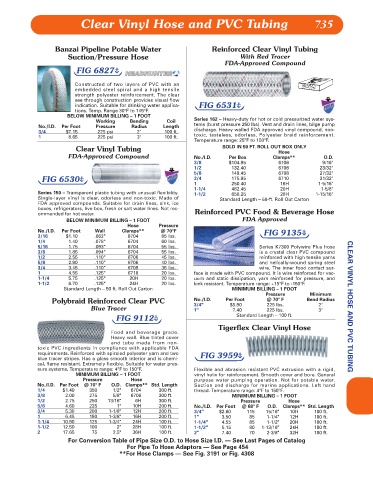

Clear Vinyl Hose and PVC Tubing 735

Banzai Pipeline Potable Water Reinforced Clear Vinyl Tubing
Suction/Pressure Hose With Red Tracer
FDA-Approved Compound
FIG 6827b

Constructed of two layers of PVC with an
embedded steel spiral and a high tensile
strength polyester reinforcement. The clear
see through construction provides visual flow
indication. Suitable for drinking water applica- FIG 6531b
tions. Temp. Range 30°F to 145°F.
BELOW MINIMUM BILLING – 1 FOOT
Working Bending Coil Series 162 – Heavy-duty for hot or cold pressurized water sys-
No./I.D. Per Foot Pressure Radius Length tems (burst pressure 250 lbs). Vent and drain lines, bilge pump
3/4 $7.15 225 psi 2" 100 ft. discharge. Heavy walled FDA approved vinyl compound, non-
1 8.65 225 psi 3" 100 ft. toxic, tasteless, odorless. Polyester braid reinforcement.
Temperature range: 25°F to 150°F.
Clear Vinyl Tubing SOLD IN 50 FT. ROLL OUT BOX ONLY
Hose
FDA-Approved Compound No./I.D. Per Box Clamps** O.D.
3/8 $104.95 6706 9/16"
1/2 132.40 6706 23/32"
5/8 149.45 6708 27/32"
FIG 6530b 3/4 175.95 6710 31/32"
1 250.40 16H 1-5/16"
1-1/4 482.45 20H 1-5/8"
Series 150 – Transparent plastic tubing with unusual flexibility. 1-1/2 650.25 28H 1-15/16"
Single-layer vinyl is clear, odorless and non-toxic. Made of Standard Length – 50-ft. Roll Out Carton
FDA approved compounds. Suitable for drain lines, sink, ice
boxes, refrigerators, live box, fresh or salt water lines. Not rec-
ommended for hot water. Reinforced PVC Food & Beverage Hose
BELOW MINIMUM BILLING – 1 FOOT FDA Approved
Hose Pressure
No./I.D. Per Foot Wall Clamps** @ 70°F FIG 9135b
3/16 $1.10 .062" 6704 65 lbs.
1/4 1.40 .078" 6704 60 lbs.
5/16 1.75 .093" 6704 55 lbs. Series K7300 Polywire Plus hose
3/8 1.85 .094" 6704 55 lbs. is a crystal clear PVC compound
1/2 2.55 .110" 6706 45 lbs. reinforced with high tensile yarns
5/8 2.90 .110" 6706 40 lbs. and helically-wound spring steel
3/4 3.45 .110" 6708 35 lbs. wire. The inner food contact sur-
1 4.55 .125" 6710 20 lbs. face is made with PVC compound. It is wire reinforced for vac-
1-1/4 5.75 .125" 20H 20 lbs. uum and static dissipation, yarn reinforced for pressure, and
1-1/2 6.70 .125" 24H 20 lbs. kink resistant. Temperature range: +15°F to -150°F.
Standard Length – 50 ft. Roll Out Carton MINIMUM BILLING – 1 FOOT
Pressure Minimum
Polybraid Reinforced Clear PVC No./I.D. Per Foot @ 70° F Bend Radius
Blue Tracer 3/4" $5.90 225 lbs. 2" CLEAR VINYL HOSE AND PVC TUBING
225 lbs.
3"
7.40
1"
FIG 9112b Standard Length – 100 ft.
Tigerflex Clear Vinyl Hose
Food and beverage grade.
Heavy wall. Blue tinted cover
and tube made from non-
toxic PVC ingredients in compliance with applicable FDA
requirements. Reinforced with spiraled polyester yarn and two FIG 3959b
blue tracer stripes. Has a glass smooth interior and is chemi-
cal, flame resistant. Extremely flexible. Suitable for water pres-
sure systems. Temperature range: 4°F to 150°F. Flexible and abrasion resistant PVC extrusion with a rigid,
MINIMUM BILLING – 1 FOOT vinyl helix for reinforcement. Smooth cover and bore. General
Pressure Hose purpose water pumping operation. Not for potable water.
No./I.D. Per Foot @ 70° F O.D. Clamps** Std. Length Suction and discharge for marine applications. Left hand
1/4 $1.40 350 1/2" 6704 300 ft. thread. Temperature range: 4°F to 150°F.
3/8 2.00 275 5/8" 6706 300 ft. MINIMUM BILLING – 1 FOOT
1/2 2.75 250 13/16" 6H 300 ft. Pressure Hose
5/8 4.60 225 1" 10H 200 ft. No./I.D. Per Foot @ 68° F O.D. Clamps** Std. Length
3/4 5.30 200 1-1/8" 12H 200 ft. 3/4" $2.60 115 15/16" 10H 100 ft.
1 6.45 150 1-3/8" 16H 200 ft. 1" 3.50 85 1-1/4" 12H 100 ft.
1-1/4 10.90 125 1-3/4" 24H 100 ft. 1-1/4" 4.55 85 1-1/2" 20H 100 ft.
1-1/2 12.50 100 2" 28H 100 ft. 1-1/2" 5.15 80 1-13/16" 24H 100 ft.
2 17.65 75 2.5" 36H 100 ft. 2" 7.40 70 2-3/8" 32H 100 ft.
For Conversion Table of Pipe Size O.D. to Hose Size I.D. — See Last Pages of Catalog
For Pipe To Hose Adaptors — See Page 454
**For Hose Clamps — See Fig. 3191 or Fig. 4308
