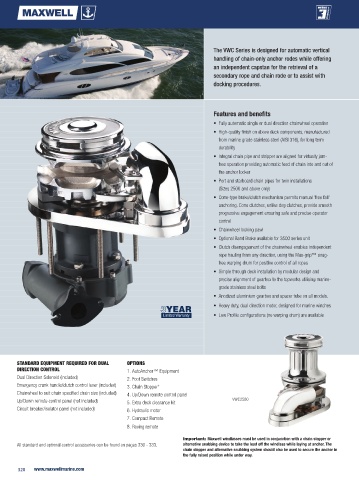

The VWC Series is designed for automatic vertical
handling of chain-only anchor rodes while offering
an independent capstan for the retrieval of a
secondary rope and chain rode or to assist with
docking procedures.

Features and benefits
• Fully automatic single or dual direction chainwheel operation
• High-quality finish on above deck components, manufactured
from marine grade stainless steel (AISI 316), for long term
durability
• Integral chain pipe and stripper are aligned for virtually jam-
free operation providing automatic feed of chain into and out of
the anchor locker
• Port and starboard chain pipes for twin installations
(Sizes 2500 and above only)
• Cone-type brake/clutch mechanism permits manual ‘free fall’
anchoring. Cone clutches, unlike dog clutches, provide smooth
progressive engagement ensuring safe and precise operator
control
• Chainwheel locking pawl
• Optional Band Brake available for 3500 series unit
• Clutch disengagement of the chainwheel enables independent
rope hauling from any direction, using the Max-grip™ snag-
free warping drum for positive control of all ropes
• Simple through deck installation by modular design and
precise alignment of gearbox to the topworks utilising marine-
grade stainless steel bolts
• Anodized aluminium gearbox and spacer tube on all models.
• Heavy duty, dual direction motor, designed for marine winches
• Low Profile configurations (no warping drum) are available

STANDARD EQUIPMENT REQUIRED FOR DUAL OPTIONS
DIRECTION CONTROL 1. AutoAnchor™ Equipment
Dual Direction Solenoid (included) 2. Foot Switches
Emergency crank handle/clutch control lever (included) 3. Chain Stopper*
Chainwheel to suit chain specified chain size (included) 4. Up/Down remote control panel
Up/Down remote control panel (not included) 5. Extra deck clearance kit VWC2500
Circuit breaker/isolator panel (not included) 6. Hydraulic motor
7. Compact Remote
8. Roving remote
Important: Maxwell windlasses must be used in conjunction with a chain stopper or
All standard and optional control accessories can be found on pages 330 - 333. alternative snubbing device to take the load off the windlass while laying at anchor. The
chain stopper and alternative snubbing system should also be used to secure the anchor in
the fully raised position while under way.
320 www.maxwellmarine.com
