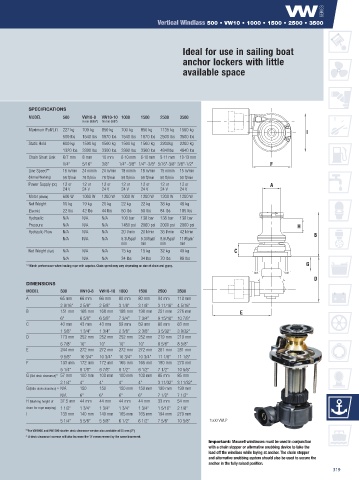

Page 319 - Vetus

Vertical Windlass 500 • VW10 • 1000 • 1500 • 2500 • 3500

Ideal for use in sailing boat

anchor lockers with little
available space

SPECIFICATIONS
MODEL 500 VW10-8 VW10-10 1000 1500 2500 3500
8 mm (5/16”) 10 mm (3/8”)
Maximum Pull/Lift 227 kg 700 kg 850 kg 700 kg 850 kg 1135 kg 1590 kg
500 lbs 1540 lbs 1870 lbs 1540 lbs 1870 lbs 2500 lbs 3500 lbs
Static Hold 600 kg 1500 kg 1500 kg 1500 kg 1500 kg 2200kg 2200 kg
1320 lbs 3300 lbs 3300 lbs 3300 lbs 3300 lbs 4840lbs 4840 lbs
Chain Short Link 6/7 mm 8 mm 10 mm 6-10 mm 6-10 mm 9-11 mm 10-13 mm
1/4” 5/16” 3/8” 1/4” -3/8” 1/4” -3/8” 5/16”-3/8” 3/8”-1/2”
Line Speed** 18 m/min 24 m/min 24 m/min 18 m/min 18 m/min 15 m/min 15 m/min
(Normal Working) 59 ft/min 79 ft/min 79 ft/min 59 ft/min 59 ft/min 50 ft/min 50 ft/min
Power Supply (DC) 12 or 12 or 12 or 12 or 12 or 12 or 12 or
24 V 24 V 24 V 24 V 24 V 24 V 24 V
Motor (Watts) 600 W 1000 W 1200 W 1000 W 1200 W 1200 W 1200 W
Net Weight 10 kg 19 kg 20 kg 22 kg 22 kg 38 kg 48 kg
(Electric) 22 lbs 42 lbs 44 lbs 50 lbs 50 lbs 84 lbs 105 lbs
Hydraulic N/A N/A N/A 100 bar 138 bar 138 bar 138 bar
Pressure N/A N/A N/A 1450 psi 2000 psi 2000 psi 2000 psi H
Hydraulic Flow N/A N/A N/A 20 l/min 20 l/min 36 l/min 42 l/min
N/A N/A N/A 5.3USgal/ 5.3USgal/ 9.5USgal/ 11USgal/
min min min min
Net Weight (Hyd) N/A N/A N/A 15 kg 15 kg 32 kg 40 kg
N/A N/A N/A 34 lbs 34 lbs 70 lbs 88 lbs
** Winch performance when hauling rope with capstan. Chain speed may vary depending on size of chain and gypsy.

DIMENSIONS
MODEL 500 VW10-8 VW10-10 1000 1500 2500 3500
A 65 mm 66 mm 66 mm 80 mm 80 mm 94 mm 110 mm
2 9/16” 2 5/8” 2 5/8” 3 1/8” 3 1/8” 3 11/16” 4 5/16”
B 151 mm 168 mm 168 mm 198 mm 198 mm 251 mm 276 mm
6” 6 5/8” 6 5/8” 7 3/4” 7 3/4” 9 15/16” 10 7/8”
C 40 mm 43 mm 43 mm 59 mm 59 mm 80 mm 83 mm
1 5/8” 1 3/4” 1 3/4” 2 3/8” 2 3/8” 3 5/32” 3 9/32”
D 173 mm 252 mm 252 mm 252 mm 252 mm 219 mm 219 mm
6 7/8” 10” 10” 10” 10” 8 5/8” 8 5/8”
E 244 mm 272 mm 272 mm 272 mm 272 mm 281 mm 281 mm
9 5/8” 10 3/4” 10 3/4” 10 3/4” 10 3/4” 11 1/8” 11 1/8”
F 133 mm 172 mm 172 mm 165 mm 165 mm 190 mm 270 mm
5 1/4” 6 7/8” 6 7/8” 6 1/2” 6 1/2” 7 1/2” 10 5/8”
G (Std deck clearance)** 57 mm 100 mm 100 mm 100 mm 100 mm 85 mm 85 mm
2 1/4” 4” 4” 4” 4” 3 11/32” 3 11/32”
G (Extra deck clearance) ^ N/A 150 150 150 mm 150 mm 190 mm 190 mm
N/A 6” 6” 6” 6” 7 1/2” 7 1/2”
H (Working height of 37.5 mm 44 mm 44 mm 44 mm 44 mm 33 mm 54 mm

drum for rope warping) 1 1/2” 1 3/4” 1 3/4” 1 3/4” 1 3/4” 1 5/16” 2 1/8”
I 133 mm 140 mm 140 mm 165 mm 165 mm 194 mm 270 mm
5 1/4” 5 5/8” 5 5/8” 6 1/2” 6 1/2” 7 5/8” 10 5/8” 1500 VWLP

**For VW1000 and VW1500 shorter deck clearance version also available at 50 mm (2”)
^ A deck clearance increase will also increase the ‘D’ measurement by the same increment.
Important: Maxwell windlasses must be used in conjunction
with a chain stopper or alternative snubbing device to take the
load off the windlass while laying at anchor. The chain stopper
and alternative snubbing system should also be used to secure the
anchor in the fully raised position.
319
