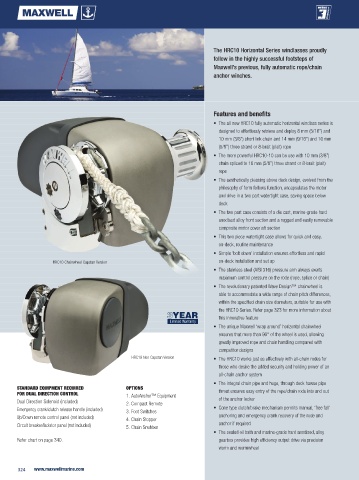

The HRC10 Horizontal Series windlasses proudly
follow in the highly successful footsteps of
Maxwell’s previous, fully automatic rope/chain
anchor winches.

Features and benefits
• The all new HRC10 fully automatic horizontal windlass series is
designed to effortlessly retrieve and deploy 8 mm (5/16”) and
10 mm (3/8”) short link chain and 14 mm (9/16”) and 16 mm
(5/8”) three strand or 8-brait (plait) rope
• The more powerful HRC10-10 can be use with 10 mm (3/8”)
chain spliced to 16 mm (5/8”) three strand or 8-brait (plait)
rope
• The aesthetically pleasing above deck design, evolved from the
philosophy of form follows function, encapsulates the motor
and drive in a two part watertight case, saving space below
deck
• The two part case consists of a die cast, marine-grade hard
anodised alloy front section and a rugged and easily removable
composite motor cover aft section
• This two piece watertight case allows for quick and easy,
on-deck, routine maintenance
• Simple ‘bolt down’ installation ensures effortless and rapid
HRC10 Chainwheel Capstan Version on-deck installation and set up
• The stainless steel (AISI 316) pressure arm always exerts
maximum control pressure on the rode (rope, splice or chain)
• The revolutionary patented Wave Design™ chainwheel is
able to accommodate a wide range of chain pitch differences,
within the specified chain size diameters, suitable for use with
the HRC10 Series. Refer page 323 for more information about
this innovative feature
• The unique Maxwell ‘wrap around’ horizontal chainwheel
ensures that more than 90° of the wheel is used, allowing
greatly improved rope and chain handling compared with
competitor designs
HRC10 Non Capstan Version • The HRC10 works just as effectively with all-chain rodes for
those who desire the added security and holding power of an
all-chain anchor system
• The integral chain pipe and huge, through deck hawse pipe
STANDARD EQUIPMENT REQUIRED OPTIONS
FOR DUAL DIRECTION CONTROL 1. AutoAnchor™ Equipment throat ensures easy entry of the rope/chain rode into and out
Dual Direction Solenoid (included) 2. Compact Remote of the anchor locker
Emergency crank/clutch release handle (included) 3. Foot Switches • Cone type clutch/brake mechanism permits manual, ‘free fall’
Up/Down remote control panel (not included) 4. Chain Stopper anchoring and emergency crank recovery of the rode and
Circuit breaker/isolator panel (not included) 5. Chain Snubber anchor if required
• The sealed oil bath and marine-grade hard anodised, alloy
Refer chart on page 340. gearbox provides high efficiency output drive via precision
worm and wormwheel
