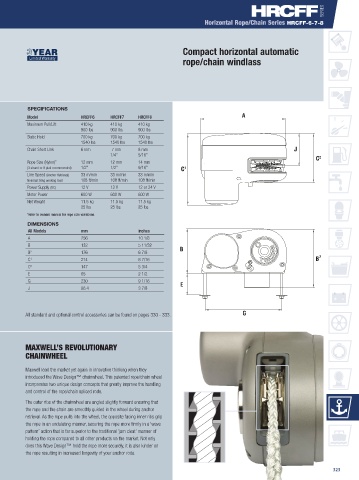

Horizontal Rope/Chain Series HRCFF-6-7-8

Compact horizontal automatic

rope/chain windlass

SPECIFICATIONS
Model HRCFF6 HRCFF7 HRCFF8
Maximum Pull/Lift 410 kg 410 kg 410 kg
900 lbs 900 lbs 900 lbs
Static Hold 700 kg 700 kg 700 kg
1540 lbs 1540 lbs 1540 lbs
Chain Short Link 6 mm 7 mm 8 mm
1/4” 5/16”
Rope Size (Nylon)* 12 mm 12 mm 14 mm
(3 strand or 8 plait recommended) 1/2” 1/2” 9/16”
Line Speed (Anchor Retrieval) 33 m/min 33 m/min 33 m/min
Nominal 30kg working load 108 ft/min 108 ft/min 108 ft/min
Power Supply (DC) 12 V 12 V 12 or 24 V
Motor Power 600 W 600 W 600 W
Net Weight 11.5 kg 11.5 kg 11.5 kg
25 lbs 25 lbs 25 lbs
*refer to owners manual for rope size variations.
DIMENSIONS
All Models mm inches
A 256 10 1/8
B 132 5 11/32
B 176 6 7/8
2
1
C 214 8 7/16
C 147 5 3/4
2
E 65 2 1/2
G 230 9 1/16
J 96.4 3 7/8

All standard and optional control accessories can be found on pages 330 - 333.

MAXWELL’S REVOLUTIONARY
CHAINWHEEL

Maxwell lead the market yet again in innovative thinking when they
introduced the Wave Design™ chainwheel. This patented rope/chain wheel
incorporates two unique design concepts that greatly improve the handling
and control of the rope/chain spliced rode.
The outer ribs of the chainwheel are angled slightly forward ensuring that
the rope and the chain are smoothly guided in the wheel during anchor
retrieval. As the rope pulls into the wheel, the opposite facing inner ribs grip
the rope in an undulating manner, securing the rope more firmly in a ‘wave
pattern’ action that is far superior to the traditional ‘jam cleat’ manner of
holding the rope compared to all other products on the market. Not only
does this Wave Design™ hold the rope more securely, it is also kinder on
the rope resulting in increased longevity of your anchor rode.
