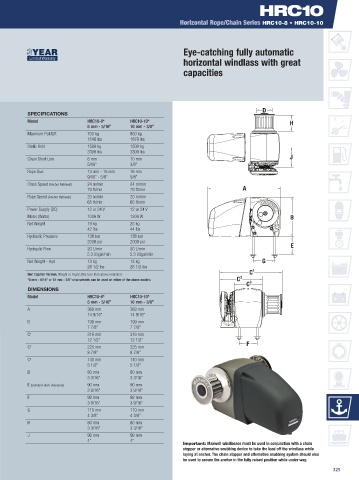

Page 325 - Vetus

Horizontal Rope/Chain Series HRC10-8 • HRC10-10

Eye-catching fully automatic
horizontal windlass with great
capacities

SPECIFICATIONS
Model HRC10-8* HRC10-10*
8 mm - 5/16” 10 mm - 3/8”
Maximum Pull/Lift 700 kg 850 kg
1540 lbs 1870 lbs
Static Hold 1500 kg 1500 kg
3300 lbs 3300 lbs
Chain Short Link 8 mm 10 mm
5/16” 3/8”
Rope Size 14 mm - 16 mm 16 mm
9/16” - 5/8” 5/8”
Chain Speed (Anchor Retrieval) 24 m/min 24 m/min
79 ft/min 79 ft/min
Rope Speed (Anchor Retrieval) 20 m/min 20 m/min
65 ft/min 65 ft/min
Power Supply (DC) 12 or 24 V 12 or 24 V
Motor (Watts) 1000 W 1200 W
Net Weight 19 kg 20 kg
42 lbs 44 lbs
Hydraulic Pressure 138 bar 138 bar
2000 psi 2000 psi
Hydraulic Flow 20 L/min 20 L/min
5.3 USgal/min 5.3 USgal/min
Net Weight - Hyd 13 kg 13 kg
28 1/2 lbs 28 1/2 lbs
Non Capstan Version. Weight is 1kg/2.2lbs less than above indicated.
*8 mm - 5/16” or 10 mm - 3/8” chainwheels can be used on either of the above models
DIMENSIONS
Model HRC10-8* HRC10-10*
8 mm - 5/16” 10 mm - 3/8”
A 369 mm 369 mm
14 9/16” 14 9/16”
B 199 mm 199 mm
7 7/8” 7 7/8”
1
C 316 mm 316 mm
12 1/2” 12 1/2”
2
C 225 mm 225 mm
8 7/8” 8 7/8”
3
C 140 mm 140 mm
5 1/2” 5 1/2”
D 80 mm 80 mm
3 3/16” 3 3/16”
E (standard deck clearance) 90 mm 90 mm
3 9/16” 3 9/16”
F 92 mm 92 mm
3 9/16” 3 9/16”
G 110 mm 110 mm
4 3/8” 4 3/8”
H 80 mm 80 mm
3 3/16” 3 3/16”
J 99 mm 99 mm
4” 4”
Important: Maxwell windlasses must be used in conjunction with a chain
stopper or alternative snubbing device to take the load off the windlass while
laying at anchor. The chain stopper and alternative snubbing system should also
be used to secure the anchor in the fully raised position while under way.
