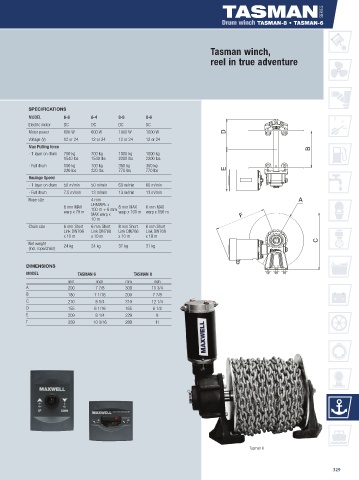

Page 329 - Vetus

TASMAN

Drum winch TASMAN-8 • TASMAN-6

Tasman winch,

reel in true adventure

SPECIFICATIONS
MODEL 6-6 6-4 8-8 8-6
Electric motor DC DC DC DC
Motor power 600 W 600 W 1000 W 1000 W D
Voltage (V) 12 or 24 12 or 24 12 or 24 12 or 24
Max Pulling force
B
- 1 layer on drum 700 kg 700 kg 1000 kg 1000 kg
1540 lbs 1540 lbs 2200 lbs 2200 lbs
- Full drum 100 kg 100 kg 350 kg 350 kg
220 lbs 220 lbs 770 lbs 770 lbs E
Haulage Speed
- 1 layer on drum 50 m/min 50 m/min 60 m/min 60 m/min
- Full drum 7.5 m/min 13 m/min 13 m/min 13 m/min
Rope size 4 mm A
UHMWPE x
6 mm MAX 100 m + 6 mm 8 mm MAX 6 mm MAX
warp x 70 m warp x 100 m warp x 150 m
MAX warp x F
10 m
Chain size 6 mm Short 6 mm Short 8 mm Short 6 mm Short
Link DIN766 Link DIN766 Link DIN766 Link DIN766
x 10 m x 10 m x 10 m x 10 m
C
Net weight 24 kg 24 kg 37 kg 31 kg
(incl. rope/chain)
DIMENSIONS
MODEL TASMAN 6 TASMAN 8
mm inch mm inch
A 200 7 7/8 300 11 3/4
B 180 7 1/16 200 7 7/8
C 210 8 1/4 310 12 1/4
D 155 6 1/16 165 6 1/2
E 209 8 1/4 229 9
F 259 10 3/16 280 11

Tasman 6
