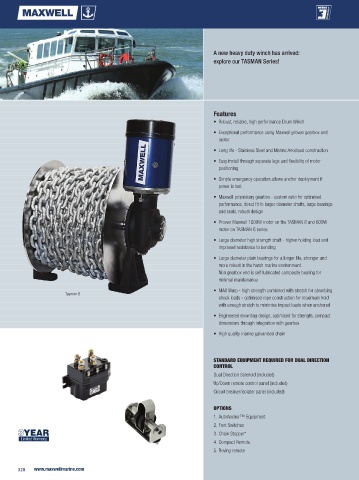

Page 328 - Vetus

A new heavy duty winch has arrived:
explore our TASMAN Series!

Features
• Robust, reliable, high performance Drum Winch

• Exceptional performance using Maxwell proven gearbox and
motor
• Long life - Stainless Steel and Marine Anodised construction

• Easy install through separate legs and flexibility of motor
positioning
• Simple emergency operation allows anchor deployment if
power is lost
• Maxwell proprietary gearbox - custom ratio for optimised
performance, direct fit to larger diameter shafts, large bearings
and seals, robust design
• Proven Maxwell 1000W motor on the TASMAN 8 and 600W
motor on TASMAN 6 series
• Large diameter high strength shaft - higher holding load and
improved resistance to bending

• Large diameter plain bearings for a longer life, stronger and
more robust in the harsh marine environment.
Non gearbox end is self lubricated composite bearing for
minimal maintenance
• MAX Warp - high strength combined with stretch for absorbing
Tasman 8
shock loads - optimised rope construction for maximum hold
with enough stretch to minimise impact loads when anchored

• Engineered mounting design, optimised for strength, compact
dimensions through integration with gearbox
• High quality marine galvanised chain

STANDARD EQUIPMENT REQUIRED FOR DUAL DIRECTION
CONTROL
Dual Direction Solenoid (included)
Up/Down remote control panel (included)
Circuit breaker/isolator panel (included)

OPTIONS
1. AutoAnchor™ Equipment
2. Foot Switches
3. Chain Stopper*
4. Compact Remote
5. Roving remote

328 www.maxwellmarine.com
