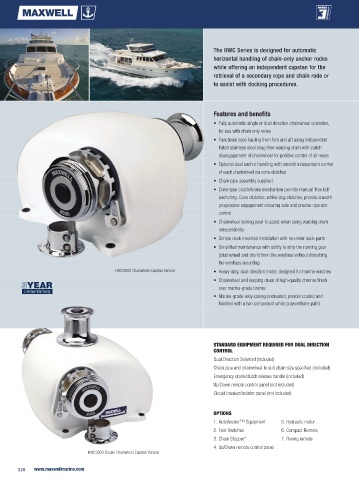

The HWC Series is designed for automatic
horizontal handling of chain-only anchor rodes
while offering an independent capstan for the
retrieval of a secondary rope and chain rode or
to assist with docking procedures.

Features and benefits
• Fully automatic single or dual direction chainwheel operation,
for use with chain only rodes
• Functional rope hauling from fore and aft using independent
fluted stainless steel snag-free warping drum with clutch
disengagement of chainwheel for positive control of all ropes
• Optional dual anchor handling with smooth independent control
of each chainwheel via cone clutches
• Chain pipe assembly supplied
• Cone-type clutch/brake mechanism permits manual ‘free fall’
anchoring. Cone clutches, unlike dog clutches, provide smooth
progressive engagement ensuring safe and precise operator
control
• Chainwheel locking pawl to assist when using warping drum
independently
• Simple deck mounted installation with no under deck parts
• Simplified maintenance with ability to strip the running gear
(chainwheel and drum) from the windlass without disturbing
the windlass mounting
HWC3500 Chainwheel Capstan Version • Heavy duty, dual direction motor, designed for marine winches
• Chainwheel and warping drum of high-quality chrome finish
over marine-grade bronze
• Marine-grade alloy casing pretreated, powder coated and
finished with a two component white polyurethane paint

STANDARD EQUIPMENT REQUIRED FOR DUAL DIRECTION
CONTROL
Dual Direction Solenoid (included)
Chain pipe and chainwheel to suit chain size specified (included)
Emergency crank/clutch release handle (included)
Up/Down remote control panel (not included)
Circuit breaker/isolator panel (not included)

OPTIONS
1. AutoAnchor™ Equipment 5. Hydraulic motor
2. Foot Switches 6. Compact Remote
3. Chain Stopper* 7. Roving remote
4. Up/Down remote control panel
HWC3500 Double Chainwheel Capstan Version

326 www.maxwellmarine.com
