I

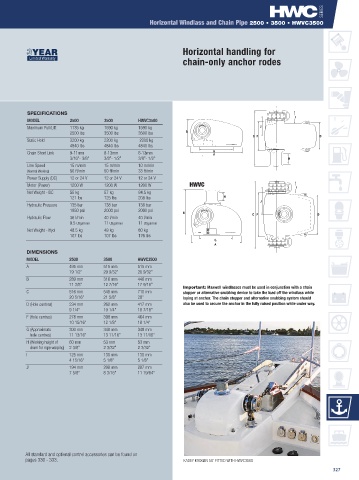

Horizontal Windlass and Chain Pipe 2500 • 3500 • HWVC3500
J
CF D

Horizontal handling for
H
chain-only anchor rodes
I
J
CF D I
B
J
CF D
H
G
A
SPECIFICATIONS
I
MODEL 2500 3500 HWVC3500 I H
Maximum Pull/Lift 1135 kg 1590 kg 1590 kg J
2500 lbs 3500 lbs 3500 lbs B J
CF D
Static Hold 2200 kg 2200 kg 2200 kg
4840 lbs 4840 lbs 4840 lbs CF D
Chain Short Link 9-11mm 8-13mm 8-13mm G A B
3/16”- 3/8” 3/8”- 1/2” 3/8”- 1/2” H
Line Speed 15 m/min 15 m/min 10 m/min I
(Normal Working) 50 ft/min 50 ft/min 33 ft/min G
Power Supply (DC) 12 or 24 V 12 or 24 V 12 or 24 V J A
Motor (Power) 1200 W 1200 W 1200 W HWVC
B I
Net Weight - DC 55 kg 57 kg 94.5 kg CF D
121 lbs 125 lbs 208 lbs H
J
Hydraulic Pressure 135 bar 138 bar 138 bar G
1950 psi 2000 psi 2000 psi A
B CF D
Hydraulic Flow 36 l/min 40 l/min 40 l/min
9.5 USgal/min 11 USgal/min 11 USgal/min I
Net Weight - Hyd 48.5 kg 49 kg 80 kg
107 lbs 107 lbs 176 lbs J
G H
A
CF D
DIMENSIONS
B
MODEL 2500 3500 HWVC3500
H
A 495 mm 515 mm 515 mm
19 1/2” 20 9/32” 20 9/32”
B 289 mm 316 mm 446 mm G B
11 3/8” 12 7/16” 17 9/16” A
Important: Maxwell windlasses must be used in conjunction with a chain
C 516 mm 549 mm 710 mm stopper or alternative snubbing device to take the load off the windlass while
H
20 5/16” 21 5/8” 28” laying at anchor. The chain stopper and alternative snubbing system should
D (Hole centres) 234 mm 260 mm 417 mm also be used to secure the anchor in the fully raised position while under way.
G
9 1/4” 10 1/4” 18 7/16” B A
F (Hole centres) 278 mm 308 mm 464 mm
10 15/16” 12 1/8” 18 1/4”
G (Approximate 300 mm 348 mm 348 mm
hole centres) 11 13/16” 13 11/16” 13 11/16”
G
H (Working height of 60 mm 53 mm 53 mm A
drum for rope warping) 2 3/8” 2 3/32” 2 3/32”
I 125 mm 130 mm 130 mm
4 15/16” 5 1/8” 5 1/8”
J 194 mm 208 mm 287 mm
7 5/8” 8 3/16” 11 19/64”

All standard and optional control accessories can be found on
pages 330 - 333. KADEY KROGEN 58’ FITTED WITH HWVC3500
327
